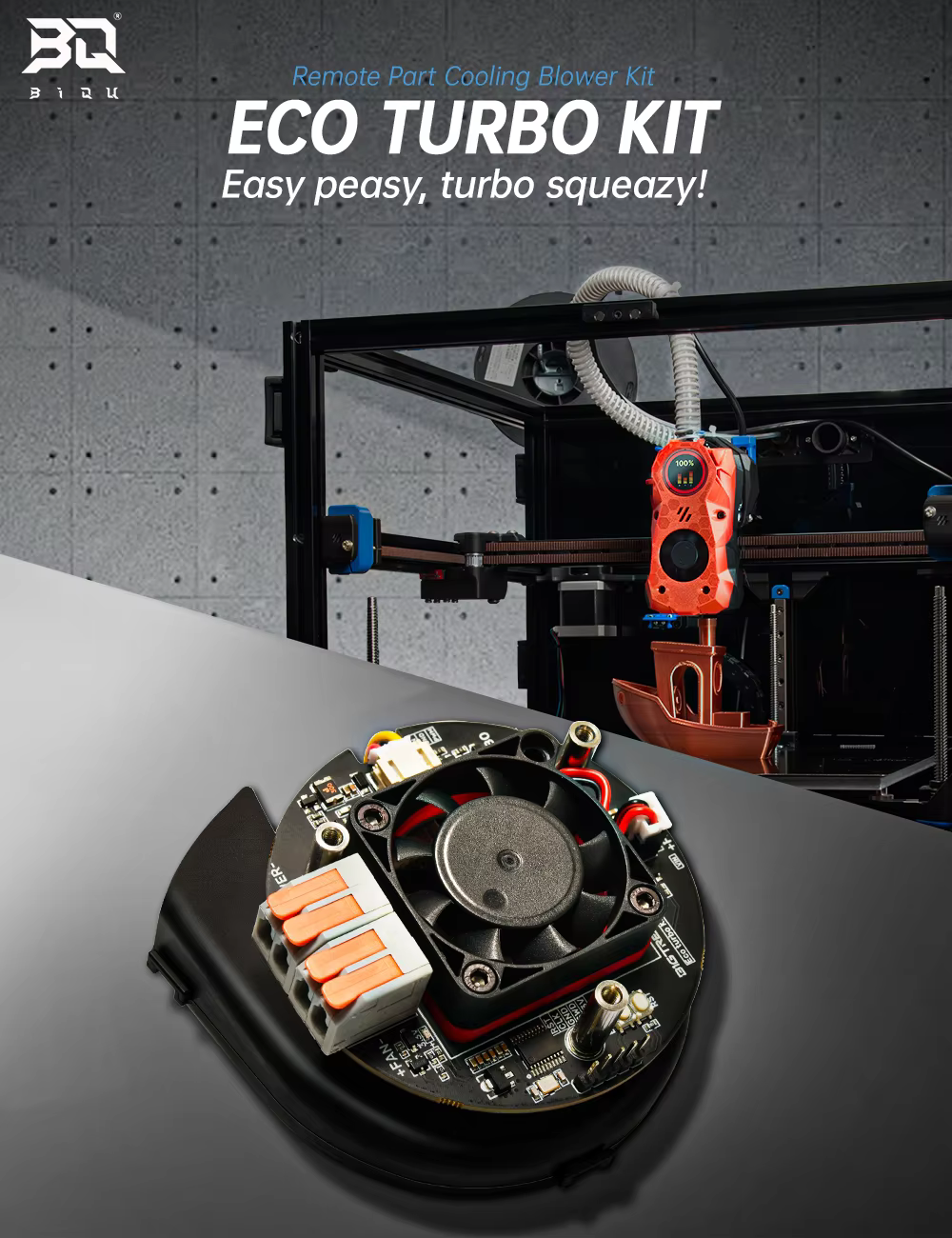

BIGTREETECH Eco Turbo Kit 24V Nidec Blower Brushless Centrifugal Air Blower For Voron2.4 VzBoT HevORT VS Universal Turbo Kit

Why Eco Turbo Kit？

• Upgrade Made Easy:5-24V Broad Voltage Range
• No Crimping Required:Easy Wiring
• Nidec Blower:High Performance and Durability
• Voron2.4 Print File&Screws:Easy Installation
• Efficient Heat Dissipation:Heat Down, Performance Up

Hassle-Free Installation

3D Printer Specialized Adapter Board:Supports 5-24V wide voltage, enabling direct replacement of standard DC fans—streamline your setup without complex firmware or Raspberry Pi GPIO connections.

Quick Terminals Wire Connector:Effortless wiring in seconds.

Pre-Crimped Terminals:Effortless connections with no crimping required.

Enduring Quality with Nidec
Designed for prolonged, stable cooling under any print conditions.

Blower fan PWM duty cycle control range: 15%-90%

Driver Cooling Fan Equipped

Keeps the driver at an optimal temperature,maximizing the blower performance and ensuring stability even under high loads.

Instant Setup with Voron 2.4 Files & Screws
Includes a complete set of installation print files and screws for Voron 2.4, streamlining your setup for a smooth experience.

Soft Anti-Fold Fan Pipe

Made with remarkably soft material, this pipe minimizes resistance during movement while the specially designed anti-fold shell prevents blockages for consistent airflow.

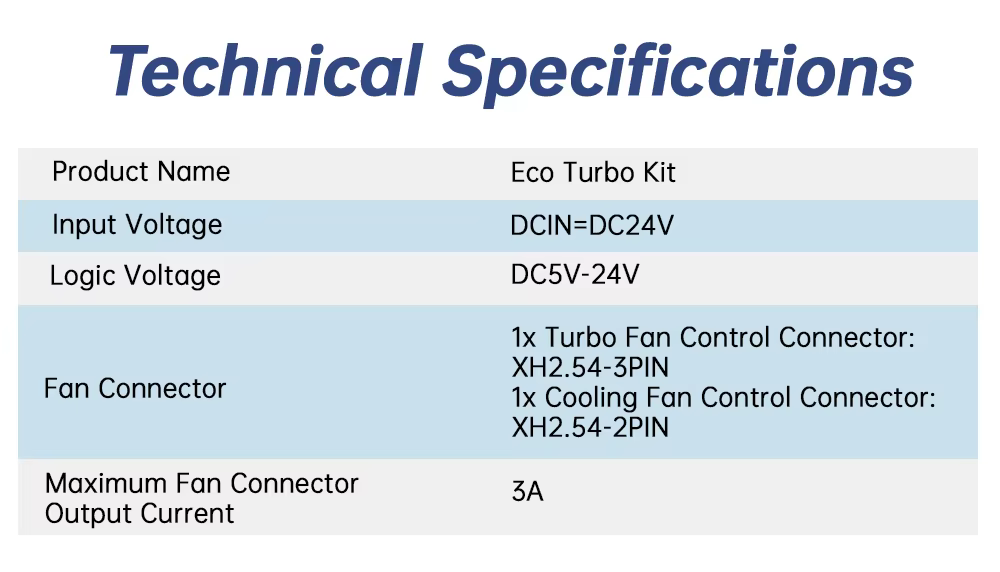

Specifications

Input Voltage：DCIN=DC24V

Logic Voltage：DC5V-24V

Fan Connector：1x Turbo Fan Control Connector: XH2.54-3PIN、1x Cooling Fan Control Connector: XH2.54-2PIN

Maximum Fan Connector Output Current：3A

Wiki：https://bttwiki.com/Eco%20Turbo%20Kit.html

Github：https://github.com/bigtreetech/Eco-Turbo-Kit

*Blower fan PWM duty cycle control range: 15%-90%

*When the PWM input signal falls below 10%, the cooling fan is deactivated. For input signals between 10% and 50%, the fan operates at 50% of its maximum speed. When the input signal ranges from 50% to 100%, the fan functions at full capacity.
