A Non-contact High-Speed Leveling Tool
Designed for Klipper
Redefining Precision, Speed, and Efficiency
- 20 sec:Rapid Leveling Speed
- 0.5µm:High Precision Leveling
- 6g:Featherlight & Small
- Temperature Compensation:High Precision and Reliability
- Effortless Installation:Custom-designed Shell for Quick and Easy Setup
Which Eddy is right for you ?
- Eddy Coil
I2C Communication:Works with EBB36\42 CAN, suitable for DIY users.
- Eddy
USB Communication:Directly connects to the host computer such as BIGTREETECH Pi via USB, easy to install and configure.
Lightning-fast and Ultra-precise
Utilizes millisecond-level eddy current scanning to precisely identify microscopic defects on the print bed and automatically adjust the height for fast and precise leveling.
Advanced Temperature Compensation
Ensures consistent, precise leveling at all times, unaffected by temperature fluctuations.
Effortless Installation in Minutes
The custom shell, designed to effectively negate external metal interference on coil detection precision, offers a predefined clearance zone for its coil, ensuring a straightforward, measurement-free installation that enhances both ease of use and accuracy.
Ready for Voron StealthBurner
Eddy series can be effortlessly attached to the ????????-????????????????/PL-08N location for quick and convenient integration.

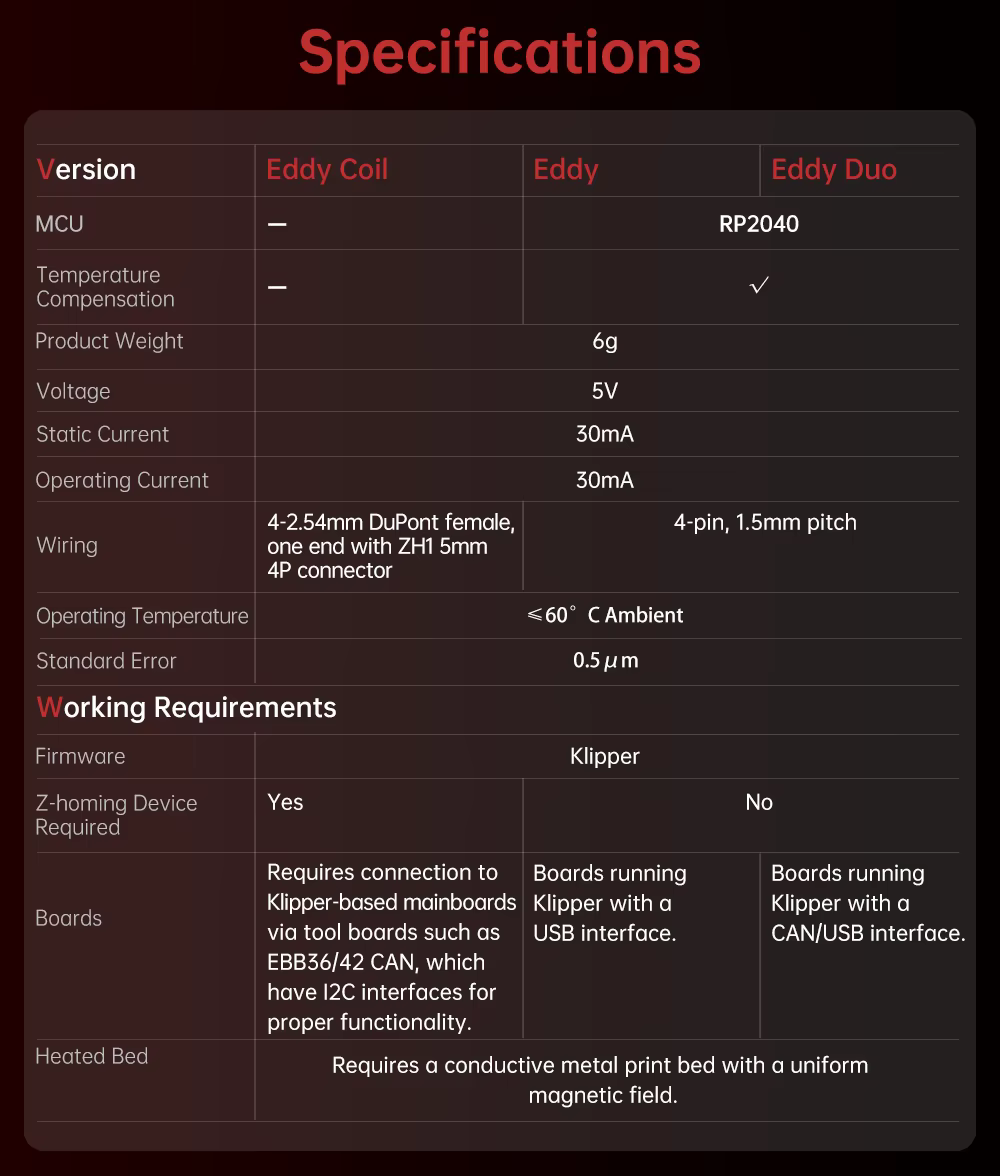

Specifications
Eddy Coil/Eddy MCU:No/RP2040
Eddy Coil/Eddy Temperature Compensation:No/YES
Product Weight:6g
Voltage:5V
Static Current:30mA
Operating Current:30mA
Eddy Coil/Eddy Wiring:Coil: 4-2.54mm DuPont female,one end with ZH1 5mm 4P connector/4-pin, 1.5mm pitch
Operating Temperature:≤60°C Ambient
Standard Error:0.5μm
Firmware:Klipper
Eddy Coil/Eddy Z-homing Device Required:YES/No
Eddy Coil/Eddy Boards:Requires connection to Klipper-based mainboards via tool boards such as EBB36/42 CAN, which have I2C interfaces for proper functionality./Boards running Klipper with a USB interface.
Heated Bed:Requires a conductive metal print bed with a uniform magnetic field.
The 20 seconds data was obtained by testing on a 250mm heated bed.
Eddy Coil lacks thermal compensation and is therefore not optimized for Z-homing. It is primarily designed to work in conjunction with an existing Z-homing device such as an endstop or probe. It offers rapid bed scanning functionality when combined with an existing Z-homing device. We have mounts designed to allow the use of the Eddy Coil along with the CHAOTICLAB CNC Tap.
https://github.com/bigtreetech/Eddy
