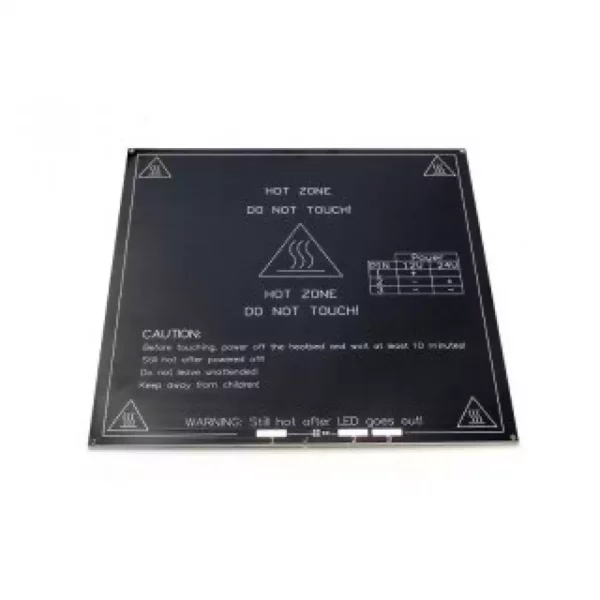

Description

• Description:

• • Dimensions: 214x214x0.8mm
  • Color: Black
  • Power Input: 12V / 24V
  • Power: 120W
  • Laminate FR4 1.6±0.15mm
  • 2 layer, 35μm copper
  • Technology: aluminum plate
  • Copper plated holes
  • Resistance: under 12V voltage, resistance 1.2 ohms; under 24V voltage, resistance 4.8 ohms

• Features:

• • 1. 12V /24 power arbitrarily connected.
  • 2. Double-sided, without cable, heating uniformity, smooth printing .
  • 3. Indistinguished between positive and negative poles, arbitrarily wiring.
  • 4. Borosilicate materials, high transparency.
  • 5. Heating the adhesion are good, plastic parts easily separated after cooling.
  • 6. Eliminates the trouble of replace the special plastic film, does not exist the special plastic film reduce viscosity problem.
  • 7. Suitable for Reprap machine heated circuit boards.

• Connect way:

• 12V connection: A line connected 1, while another receive 2, 3.
• 24V connection: A cable connected 2, another line connected 3 (1 do not connected).
